Spring Boot sorting with Thymeleaf Tutorial

Welcome, in this tutorial, we will understand the sorting in a spring boot application and for this, we will use thymeleaf.

1. Introduction

Before going further in this tutorial, we will look at the common terminology such as introduction to Spring Boot, Lombok, Thymeleaf, and Sorting.

1.1 Spring Boot

  • Spring boot is a module that provides rapid application development feature to the spring framework including auto-configuration, standalone-code, and production-ready code
  • It creates applications that are packaged as jar and are directly started using embedded servlet container (such as Tomcat, Jetty or, Undertow). Thus, no need to deploy the war files
  • It simplifies the maven configuration by providing the starter template and helps to resolve the dependency conflicts. It automatically identifies the required dependencies and imports them into the application
  • It helps in removing the boilerplate code, extra annotations, and XML configurations
  • It provides a powerful batch processing and manages the rest endpoints
  • It provides an efficient jpa-starter library to effectively connect the application with the relational databases
  • It offers a Microservice architecture and cloud configuration that manages all the application related configuration properties in a centralized manner

1.2 Lombok

  • Lombok is nothing but a small library which reduces the amount of boilerplate Java code from the project
  • Automatically generates the getters and setters for the object by using the Lombok annotations
  • Hooks in via the Annotation processor API
  • Raw source code is passed to Lombok for code generation before the Java Compiler continues. Thus, produces properly compiled Java code in conjunction with the Java Compiler
  • Under the target/classes folder you can view the compiled class files
  • Can be used with Maven, Gradle IDE, etc.

1.2.1 Lombok features

FeatureDetails
valLocal variables are declared as final
varMutable local variables
@Slf4JCreates an SLF4J logger
@CleanupWill call close() on the resource in the finally block
@GetterCreates getter methods for all properties
@SetterCreates setter for all non-final properties
@EqualsAndHashCode
  • Generates implementations of equals(Object other) and hashCode()
  • By default will use all non-static, non-transient properties
  • Can optionally exclude specific properties
@ToString
  • Generates String of class name, and each field separated by commas
  • Optional parameter to include field names
  • Optional parameter to include a call to the super toString method
@NoArgsConstructor
  • Generates no-args constructor
  • Will cause compiler error if there are final fields
  • Can optionally force, which will initialize final fields with 0/false/null var – mutable local variables
@RequiredArgsContructor
  • Generates a constructor for all fields that are final or marked @NonNull
  • The constructor will throw a NullPointerException if any @NonNull fields are null val – local variables are declared final
@AllArgsConstructor
  • Generates a constructor for all properties of the class
  • Any @NotNull properties will have null checks
@Data
  • Generates typical boilerplate code for POJOs
  • Combines – @Getter, @Setter, @ToString, @EqualsAndHashCode, @RequiredArgsConstructor
  • No constructor is generated if constructors have been explicitly declared
@Builder
  • Implements the Builder pattern for object creation
@Value
  • The immutable variant of @Data
  • All fields are made private and final by default

1.3 Thymeleaf

  • Thymeleaf is a server-side java template engine for the web applications
  • It processes the HTML, XML, JS, CSS, and simple text to bring the elegant designing to a web application
  • To use Thymeleaf, you must define the spring-boot-starter-thymeleaf dependency in the pom.xml and mention the xmlns:th="https://thymeleaf.org" library in the templates

1.4 Sorting

  • Sorting is a process of retrieving the data in the ascending or the descending based on a given field
  • To perform pagination and sorting in a spring boot application we will use the PagingAndSortingRepository interface to provide the additional methods to sort the results either in the ascending or the descending order

2. Spring Boot sorting with Thymeleaf Tutorial

Here is a systematic guide for implementing this tutorial but before going any further I’m assuming that you are aware of the Spring boot basics.

2.1 Application Pre-requisite

To start with this tutorial, we are hoping that you at present have the Lombok plugin installed in the IDE of their favorite choice. If someone needs to go through the Lombok installation on IntelliJ IDE, please watch this video. For installation on Eclipse IDE, please watch this video.

2.2 Tools Used and Project Structure

We are using Eclipse Kepler SR2, JDK 8, and Maven. In case you’re confused about where you should create the corresponding files or folder, let us review the project structure of the spring boot application.

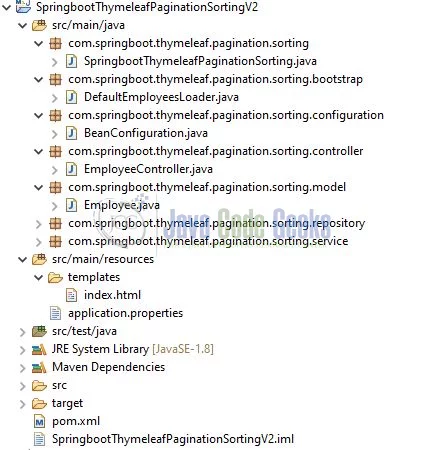

Spring Boot sorting thymeleaf
Fig. 1: Project structure

Let us start building the application!

3. Creating a Spring Boot application

Below are the steps involved in developing the application.

3.1 Maven Dependency

Here, we specify the dependency for the Spring Boot, Spring Data JPA, Thymeleaf, H2 database, Faker, and Lombok. Maven will automatically resolve the other dependencies. The updated file will have the following code.

pom.xml

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
<?xml version="1.0" encoding="UTF-8"?>
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.springboot.thymeleaf.pagination.sorting</groupId>
    <artifactId>SpringbootThymeleafPaginationSortingV2</artifactId>
    <version>0.0.1-SNAPSHOT</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.4.RELEASE</version>
    </parent>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <!-- embedded database (h2) dependency. -->
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <scope>runtime</scope>
        </dependency>
        <!-- lombok dependency. -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <scope>provided</scope>
        </dependency>
        <!-- faker dependency to generate some random data. -->
        <dependency>
            <groupId>com.github.javafaker</groupId>
            <artifactId>javafaker</artifactId>
            <version>1.0.2</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

3.2 Application Properties

Create a new properties file at the location: SpringbootThymeleafPaginationSortingV2/src/main/resources/ and add the following code to it.

application.properties

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
server.port=10092
spring.application.name=springboot-thymeleaf-pagination-and-sorting
# h2 database settings
spring.datasource.username=sa
spring.datasource.password=
spring.datasource.url=jdbc:h2:mem:testdb
spring.datasource.driverClassName=org.h2.Driver
# logging
spring.jpa.database-platform=org.hibernate.dialect.H2Dialect
spring.jpa.hibernate.ddl-auto=create-drop
spring.jpa.properties.hibernate.show_sql=true
# details sql monitoring
# logging.level.org.hibernate.SQL=DEBUG
# logging.level.org.hibernate.type=TRACE
## browser url for h2 console - http://localhost:10092/h2-console
spring.h2.console.enabled=true
spring.h2.console.path=/h2-console

3.3 Java Classes

Let us write all the java classes involved in this application.

3.3.1 Implementation/Main class

Add the following code to the main class to bootstrap the application from the main method. Always remember, the entry point of the spring boot application is the class containing @SpringBootApplication annotation and the static main method.

SpringbootThymeleafPaginationSorting.java

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
package com.springboot.thymeleaf.pagination.sorting;

import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

//Causes Lombok to generate a logger field.
@Slf4j
//Serves two purposes i.e. configuration and bootstrapping.
@SpringBootApplication
public class SpringbootThymeleafPaginationSorting {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootThymeleafPaginationSorting.class, args);
        log.info("Springboot pagination and sorting with thymeleaf application is started successfully.");
    }
}

3.3.2 Model class

Add the following code to the Employee model class.

Employee.java

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
package com.springboot.thymeleaf.pagination.sorting.model;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.stereotype.Component;

import javax.persistence.*;

@Entity
@Table(name = "employees")
// Causes Lombok to generate toString(), equals(), hashCode(), getter() & setter(), and Required arguments constructor in one go.
@Data
// Causes Lombok to implement the Builder design pattern for the POJO class.
// Usage can be seen in DefaultEmployeesLoader.java -> createNewEmployee() method.
@Builder
// Causes Lombok to generate a constructor with no parameters.
@NoArgsConstructor
// Causes Lombok to generate a constructor with 1 parameter for each field in your class.
@AllArgsConstructor
@Component
public class Employee {

    @Id
    @GeneratedValue(strategy = GenerationType.AUTO)
    long id;
    @Column(name = "first_name", nullable = false)
    String firstName;
    @Column(name = "last_name", nullable = false)
    String lastName;
    @Column(name = "gender")
    String gender;
    @Column(name = "email", nullable = false)
    String email;
    @Column(name = "phone_number", unique = true)
    String phoneNumber;
    @Column(name = "home_address")
    String homeAddress;
}

3.3.3 Configuration class

Add the following code to the bean class that will return the bean object for the faker object. The usage of this object can be seen in the DefaultEmployeesLoader.java class which is used to load the dummy data into the database on the application startup.

BeanConfiguration.java

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
package com.springboot.thymeleaf.pagination.sorting.configuration;

import com.github.javafaker.Faker;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.Locale;

@Configuration
public class BeanConfiguration {

    @Bean
    public Faker faker() {
        return new Faker(new Locale("en-US"));
    }
}

3.3.4 Data-Access-Object interface

Add the following code to the interface that extends the PagingAndSortingRepository interface.

EmployeeRepository.java

01
02
03
04
05
06
07
08
09
10
package com.springboot.thymeleaf.pagination.sorting.repository;

import com.springboot.thymeleaf.pagination.sorting.model.Employee;
import org.springframework.data.repository.PagingAndSortingRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface EmployeeRepository extends PagingAndSortingRepository<Employee, Long> {

}

3.3.5 Service class

Add the following code to the service class where we will call the DAO interface methods to save the data into the database and also fetch the data from the database.

EmployeeService.java

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
package com.springboot.thymeleaf.pagination.sorting.service;

import com.springboot.thymeleaf.pagination.sorting.model.Employee;
import com.springboot.thymeleaf.pagination.sorting.repository.EmployeeRepository;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.stereotype.Service;

//Causes Lombok to generate a logger field.
@Slf4j
@Service
public class EmployeeService {

    @Autowired
    private EmployeeRepository repository;

    public void save(final Employee employee) {
        repository.save(employee);
    }

    public long getTotalEmployees() {
        log.info("Finding the total count of employees from the dB.");
        return repository.count();
    }

    public Page<Employee> findPaginated(final int pageNumber, final int pageSize,
                                        final String sortField, final String sortDirection) {
        log.info("Fetching the paginated employees from the dB.");
        final Sort sort = sortDirection.equalsIgnoreCase(Sort.Direction.ASC.name()) ?
                Sort.by(sortField).ascending() : Sort.by(sortField).descending();
        final Pageable pageable = PageRequest.of(pageNumber - 1, pageSize, sort);
        return repository.findAll(pageable);
    }
}

3.3.6 Bootstrap class

Add the following code to the bootstrap class to save the dummy data into the database on the application startup. This data will be saved in the H2 database.

DefaultEmployeesLoader.java

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
package com.springboot.thymeleaf.pagination.sorting.bootstrap;

import com.github.javafaker.Faker;
import com.springboot.thymeleaf.pagination.sorting.model.Employee;
import com.springboot.thymeleaf.pagination.sorting.service.EmployeeService;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.CommandLineRunner;
import org.springframework.stereotype.Component;

import java.util.Random;

// Causes Lombok to generate a logger field.
@Slf4j
// Causes Lombok to generate a constructor with 1 parameter for each field that requires special handling.
@RequiredArgsConstructor
@Component
public class DefaultEmployeesLoader implements CommandLineRunner {

    private static final String[] GENDER = {"Male", "Female", "Transgender", "Not to specify"};
    private static final Random RANDOM = new Random();

    private final EmployeeService service;
    private final Faker faker;

    @Override
    public void run(String... args) throws Exception {
        loadEmployees();
    }

    private void loadEmployees() {
        int count = 0;
        if (service.getTotalEmployees() == 0) {
            for (int x = 0; x < 100; x++) {
                count = count + 1;
                service.save(createNewEmployee());
            }
            log.info("Total {} employees are saved in the database.", count);
        } else {
            log.info("Default employees are already present in the database.");
        }
    }

    private Employee createNewEmployee() {
        final String firstName = faker.name().firstName();
        final String lastName = faker.name().lastName();
        final String gender = GENDER[RANDOM.nextInt(GENDER.length)];
        final String emailAddress = firstName.toLowerCase() + "." + lastName.toLowerCase() + "@somecompany.com";

        return Employee.builder()
                .firstName(firstName)
                .lastName(lastName)
                .gender(gender)
                .email(emailAddress)
                .phoneNumber(faker.phoneNumber().cellPhone())
                .homeAddress(faker.address().fullAddress())
                .build();
    }
}

3.3.7 Index Controller class

Add the following code to the controller class designed to handle the incoming requests. The class is annotated with the @Controller annotation were the HTTP GET method would return the index page of the application.

EmployeeController.java

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
package com.springboot.thymeleaf.pagination.sorting.controller;

import com.springboot.thymeleaf.pagination.sorting.model.Employee;
import com.springboot.thymeleaf.pagination.sorting.service.EmployeeService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestParam;

import java.util.List;

//Causes Lombok to generate a logger field.
@Slf4j
@Controller
public class EmployeeController {

    @Autowired
    private EmployeeService service;

    // URL - http://localhost:10092/
    @GetMapping(value = "/")
    public String viewIndexPage() {
        log.info("Redirecting the index page to the controller method for fetching the employees in a "
                + "paginated fashion.");
        // During the index page we are using the sort-field as id and sort-dir as asc.
        return "redirect:page/1?sort-field=id&sort-dir=asc";
    }

    @GetMapping(value = "/page/{page-number}")
    public String findPaginated(@PathVariable(name = "page-number") final int pageNo,
                                @RequestParam(name = "sort-field") final String sortField,
                                @RequestParam(name = "sort-dir") final String sortDir,
                                final Model model) {
        log.info("Getting the employees in a paginated way for page-number = {}, sort-field = {}, and "
                + "sort-direction = {}.", pageNo, sortField, sortDir);
        // Hardcoding the page-size to 15.
        final int pageSize = 15;
        final Page<Employee> page = service.findPaginated(pageNo, pageSize, sortField, sortDir);
        final List<Employee> listEmployees = page.getContent();

        // Creating the model response.
        // Note for simplicity purpose we are not making the use of ResponseDto here.
        // In ideal cases the response will be encapsulated in a class.
        // pagination parameters
        model.addAttribute("currentPage", pageNo);
        model.addAttribute("totalPages", page.getTotalPages());
        model.addAttribute("totalItems", page.getTotalElements());
        // sorting parameters
        model.addAttribute("sortField", sortField);
        model.addAttribute("sortDir", sortDir);
        model.addAttribute("reverseSortDir", sortDir.equals("asc") ? "desc" : "asc");
        // employees
        model.addAttribute("listEmployees", listEmployees);
        return "index";
    }
}

4. Thymeleaf Changes

We will create a simple HTML page that will display the employees on the browser in smaller chunks (i.e. the paginated approach) and will support the sorting. Create a new HTML file at the location: SpringbootThymeleafPaginationSortingV2/src/main/resources/templates/ and add the following code to it.

index.html

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">

<head>
    <meta charset="UTF-8">
    <title>Index page</title>
    <style type="text/css">
        th {
            text-align: center;
            font-weight: bold;
            border-top: none !important;
        }

        th, td {
            white-space: nowrap;
        }

        .mt-20 {
            margin-top: 20px;
        }
    </style>
</head>

<body>
<div class="container">
    <h3 class="text-info text-center mt-20">Sorting Example : Employees</h3>
    <!-- employees table -->
    <table class="table table-striped mt-20 text-center" id="employeesTable">
        <thead>
        <tr>
            <!-- sorting control via employee id -->
            <th>
                <a th:href="@{'/page/' + ${currentPage} + '?sort-field=id&sort-dir=' + ${reverseSortDir}}">Id</a>
            </th>
            <!-- sorting control via employee firstname -->
            <th>
                <a th:href="@{'/page/' + ${currentPage} + '?sort-field=firstName&sort-dir=' + ${reverseSortDir}}">First name</a>
            </th>
            <!-- sorting control via employee lastname -->
            <th>
                <a th:href="@{'/page/' + ${currentPage} + '?sort-field=lastName&sort-dir=' + ${reverseSortDir}}">Last name</a>
            </th>
            <th>Email address</th>
            <th>Gender</th>
            <th>Phone number</th>
            <th>Home address</th>
        </tr>
        </thead>
        <tbody>
            <tr th:each="employee : ${listEmployees}">
                <td th:text="${employee.id}"></td>
                <td th:text="${employee.firstName}"></td>
                <td th:text="${employee.lastName}"></td>
                <td th:text="${employee.gender}"></td>
                <td th:text="${employee.email}"></td>
                <td th:text="${employee.phoneNumber}"></td>
                <td th:text="${employee.homeAddress}"></td>
            </tr>
        </tbody>
    </table>
    <!-- pagination control -->
    <div th:if="${totalPages > 1}">
        <div class="row col-sm-10">
            <div class="col-sm-2">
                Total employees: <strong>[[${totalItems}]]</strong>
            </div>
            <div class="col-sm-1">
                    <span th:each="i: ${#numbers.sequence(1, totalPages)}">
                        <a th:href="@{'/page/' + ${i} + '?sort-field=' + ${sortField} + '&sort-dir=' + ${sortDir}}"
                           th:if="${currentPage != i}">[[${i}]]</a>
                        <span th:unless="${currentPage != i}">[[${i}]]</span>
                    </span>
            </div>
            <div class="col-sm-1">
                <a th:href="@{'/page/' + ${currentPage + 1} + '?sort-field=' + ${sortField} + '&sort-dir=' + ${sortDir}}"
                   th:if="${currentPage < totalPages}">
                    Next
                </a>
                <span th:unless="${currentPage < totalPages}">Next</span>
            </div>
            <div class="col-sm-1">
                <a th:href="@{'/page/' + ${totalPages} + '?sort-field=' + ${sortField} + '&sort-dir=' + ${sortDir}}"
                   th:if="${currentPage < totalPages}">
                    Last
                </a>
                <span th:unless="${currentPage < totalPages}">Last</span>
            </div>
        </div>
    </div>
</div>
</body>

</html>

5. Run the Application

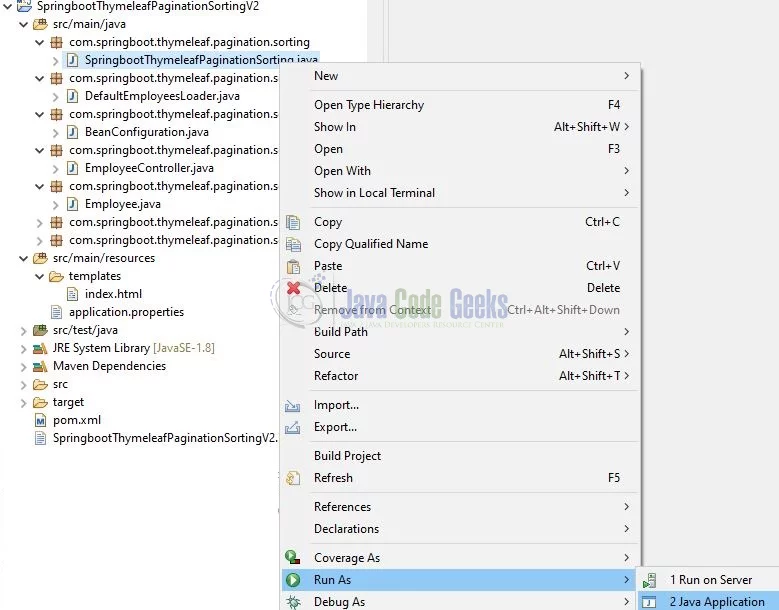

To execute the application, right-click on the SpringbootThymeleafPaginationSorting.java class, Run As -> Java Application.

Spring Boot sorting thymeleaf - Run the Application
Fig. 2: Run the Application

6. Project Demo

Open the browser of your choice and hit the following URL. The result will be displayed in a paginated manner (i.e. smaller chunks) and you can click on the page number to retrieve the results as per the page number.

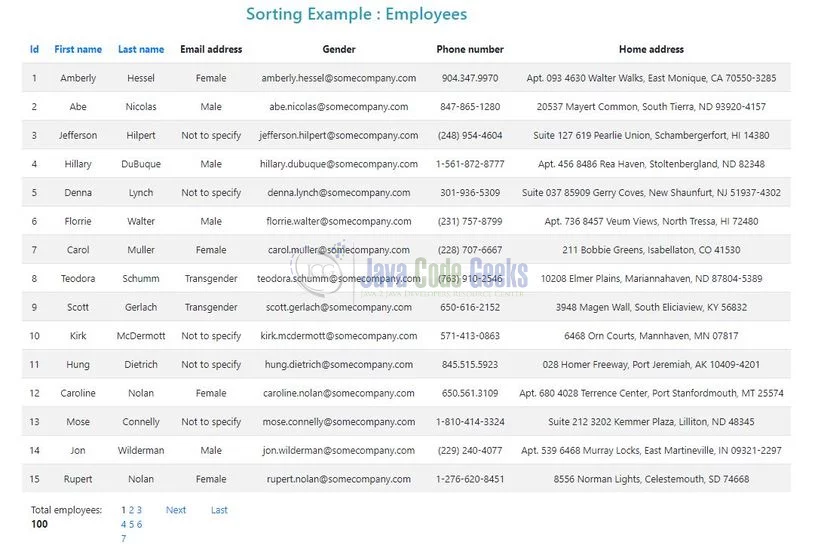

Spring Boot sorting thymeleaf - Index Page
Fig. 3: Index Page

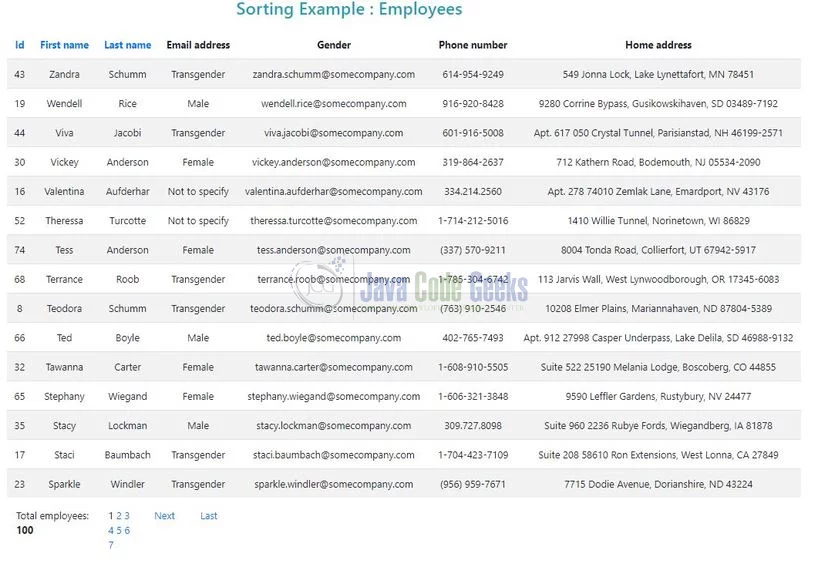

You can click on the column names to sort the results based on the sort field either in the ascending or the descending order.

Spring Boot sorting thymeleaf - Sorted Result
Fig. 4: Sorted Result

That is all for this tutorial and I hope the article served you whatever you were looking for. Happy Learning and do not forget to share!

7. Summary

In this section, you learned:

  • Spring Boot, Thymeleaf, Lombok and it features, and Sorting
  • Sorting implementation in Spring Boot and displaying the elements on the browser using Thymeleaf

You can download the sample application as an Eclipse project in the Downloads section.

8. Download the Eclipse Project

This was an example of Spring Boot sorting with Thymeleaf.

Download
You can download the full source code of this example here: Spring Boot sorting with Thymeleaf Tutorial

Do you want to know how to develop your skillset to become a Java Rockstar?

Subscribe to our newsletter to start Rocking right now!

To get you started we give you our best selling eBooks for FREE!



1. JPA Mini Book

2. JVM Troubleshooting Guide

3. JUnit Tutorial for Unit Testing

4. Java Annotations Tutorial

5. Java Interview Questions

6. Spring Interview Questions

7. Android UI Design



and many more ....



Receive Java & Developer job alerts in your Area

I have read and agree to the terms & conditions



Subscribe
Notify of
guest

This site uses Akismet to reduce spam. Learn how your comment data is processed.

0 Comments
Inline Feedbacks
View all comments
