With Vaadin Calendar widget, you get a complete calendar solution that allows you to do all sorts of calendar related tasks, visually stunning out of the box, can be customizable to fill all your needs in a online calendar solution, easy to use and free, Vaadin offers a nice solution to use in enterprise applications where you need this kind of solution.
1. The tools
- Java JDK 8
- Latest Eclipse Mars
- Vaadin 7.6.2
2. Introduction
In this example we are going to make a calendar, customize the visible range and then add two example events, a week event and hour event also we are going to add butons to change the calendar view to day, week and month view.
3. Prerequisites
- JDK installed
- Eclipse Mars installed and working
- Vaadin Plugin 7.6.2
4. Create the project
Start eclipse and create a new Vaadin 7 application File -> New -> Other…
and choose Vaadin 7 Project from the list.

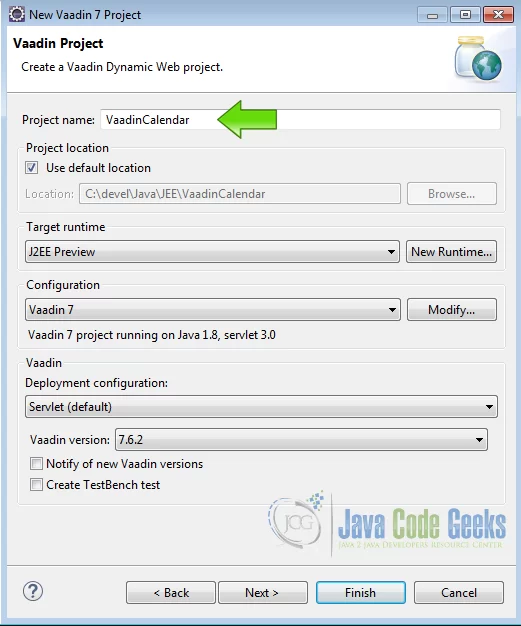

Hit next and write the project name
Hit next twice and choose the option generate web.xml deployment descriptor
and then hit finish, now we are ready to code.
5. Modify web.xml
Open the file WebContent -> WEB-INF -> web.xml and modify as follows
web.xml
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 | <?xml version="1.0" encoding="UTF-8"?><web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0"> <display-name>VaadinCalendar</display-name> <servlet> <servlet-name>myservlet</servlet-name> <servlet-class> com.vaadin.server.VaadinServlet </servlet-class> <init-param> <param-name>UI</param-name> <param-value>com.example.vaadincalendar.VaadincalendarUI</param-value> </init-param> </servlet> <servlet-mapping> <servlet-name>myservlet</servlet-name> <url-pattern>/*</url-pattern> </servlet-mapping></web-app> |
I prefer to use web.xml to publish my servlet but you can use annotations if you like
6. Create the layouts
Create layouts
1 2 3 4 5 6 | final VerticalLayout layout = new VerticalLayout();layout.setMargin(true);setContent(layout); HorizontalLayout btLayout = new HorizontalLayout();layout.addComponent(btLayout); |
I created a vertical layout for the main layout and a horizontal layout to add the buttons to change the calendar view
7. Create the calendar
Create the calendar
1 2 3 4 5 | Calendar cal = new Calendar("My Calendar");cal.setWidth("800px");cal.setHeight("600px");cal.setStartDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime());cal.setEndDate(new GregorianCalendar(2016, 2, 16, 13, 00, 00).getTime()); |
I change the width and height of the calendar and set the initial range with setStartDate and setEndDate, that sets the dates used to show the calendar, Vaadin under the hood, choose the best view for the range.
8. Add test events
Add events
01 02 03 04 05 06 07 08 09 10 | GregorianCalendar eStaOne = new GregorianCalendar(2016, 1, 17, 13, 00, 00);GregorianCalendar eEndOne = new GregorianCalendar(2016, 1, 17, 16, 00, 00);BasicEvent beOne= new BasicEvent("Event One", "Event One", eStaOne.getTime(), eEndOne.getTime());cal.addEvent(beOne);GregorianCalendar eStaTwo = new GregorianCalendar(2016, 1, 21, 0, 00, 00);GregorianCalendar eEndTwo = new GregorianCalendar(2016, 1, 27, 0, 00, 00);BasicEvent beTwo = new BasicEvent("Event Two", "Event Two", eStaTwo.getTime(),eEndTwo.getTime());beTwo.setAllDay(true);cal.addEvent(beTwo); |
I added two BasicEvent using the standard java.util.GregorianCalendar to set the date without hassle, the BasicEvent constructor offers two strings parameters to assign a caption and a description to the event.
9. Add the Buttons
Buttons
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 | Button buttonDay = new Button("Day view");buttonDay.addClickListener(new Button.ClickListener() { public void buttonClick(ClickEvent event) { cal.setStartDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); cal.setEndDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); }});btLayout.addComponent(buttonDay);Button buttonWeek = new Button("Week view");buttonWeek.addClickListener(new Button.ClickListener() { public void buttonClick(ClickEvent event) { cal.setStartDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); cal.setEndDate(new GregorianCalendar(2016, 1, 23, 13, 00, 00).getTime()); }});btLayout.addComponent(buttonDay);Button buttonMonth = new Button("Month view");buttonMonth.addClickListener(new Button.ClickListener() { public void buttonClick(ClickEvent event) { cal.setStartDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); cal.setEndDate(new GregorianCalendar(2016, 2, 16, 13, 00, 00).getTime()); }});btLayout.addComponent(buttonDay);btLayout.addComponent(buttonWeek);btLayout.addComponent(buttonMonth); |
I added three buttons to change the calendar view, Vaadin choose the right view from the range in the dates.
10. The complete source code
VaadinCalendarUI.java
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 | package com.example.vaadincalendar;import java.util.GregorianCalendar;import java.util.Locale;import com.vaadin.annotations.Theme;import com.vaadin.server.VaadinRequest;import com.vaadin.server.VaadinServlet;import com.vaadin.ui.Button;import com.vaadin.ui.Button.ClickEvent;import com.vaadin.ui.Calendar;import com.vaadin.ui.HorizontalLayout;import com.vaadin.ui.UI;import com.vaadin.ui.VerticalLayout;import com.vaadin.ui.components.calendar.event.BasicEvent;@SuppressWarnings("serial")@Theme("vaadincalendar")public class VaadincalendarUI extends UI { public static class Servlet extends VaadinServlet { } @Override protected void init(VaadinRequest request) { this.setLocale(Locale.US); final VerticalLayout layout = new VerticalLayout(); layout.setMargin(true); setContent(layout); HorizontalLayout btLayout = new HorizontalLayout(); layout.addComponent(btLayout); Calendar cal = new Calendar("My Calendar"); cal.setWidth("800px"); cal.setHeight("600px"); cal.setStartDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); cal.setEndDate(new GregorianCalendar(2016, 2, 16, 13, 00, 00).getTime()); GregorianCalendar eStaOne = new GregorianCalendar(2016, 1, 17, 13, 00, 00); GregorianCalendar eEndOne = new GregorianCalendar(2016, 1, 17, 16, 00, 00); BasicEvent beOne= new BasicEvent("Event One", "Event One", eStaOne.getTime(), eEndOne.getTime()); cal.addEvent(beOne); GregorianCalendar eStaTwo = new GregorianCalendar(2016, 1, 21, 0, 00, 00); GregorianCalendar eEndTwo = new GregorianCalendar(2016, 1, 27, 0, 00, 00); BasicEvent beTwo = new BasicEvent("Event Two", "Event Two", eStaTwo.getTime(), eEndTwo.getTime()); beTwo.setAllDay(true); cal.addEvent(beTwo); layout.addComponent(cal); Button buttonDay = new Button("Day view"); buttonDay.addClickListener(new Button.ClickListener() { public void buttonClick(ClickEvent event) { cal.setStartDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); cal.setEndDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); } }); btLayout.addComponent(buttonDay); Button buttonWeek = new Button("Week view"); buttonWeek.addClickListener(new Button.ClickListener() { public void buttonClick(ClickEvent event) { cal.setStartDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); cal.setEndDate(new GregorianCalendar(2016, 1, 23, 13, 00, 00).getTime()); } }); btLayout.addComponent(buttonDay); Button buttonMonth = new Button("Month view"); buttonMonth.addClickListener(new Button.ClickListener() { public void buttonClick(ClickEvent event) { cal.setStartDate(new GregorianCalendar(2016, 1, 16, 13, 00, 00).getTime()); cal.setEndDate(new GregorianCalendar(2016, 2, 16, 13, 00, 00).getTime()); } }); btLayout.addComponent(buttonDay); btLayout.addComponent(buttonWeek); btLayout.addComponent(buttonMonth); }} |
11. Running the example
Right click on the project folder and choose Run as -> Run on server
Choose your preferred server and hit finish.
12. The results
You got your new shini calendar ready to hack and use it in your web application.
13. Download the source code
This was an example about Vaadin Calendar.
You can download the Eclipse project here: Vaadin Calendar
