Android Sending SMS Example

In some situations, we want to send sms messages from our own Android application. There are two different ways to do such a thing:

The use of SmsManager facilitates the sms sending because it gives us the opportunity to customize this functionality with the manner we want, within our own Activity. In parallel, the use of Intents implies the use of built-in applications and sms clients that are installed in each Android device. In this example, we are going to implement both ways. More specifically, we are going to send a sms by using SmsManager and implicit Intent with SENDTO action and/or VIEW action.

For this tutorial, we will use the following tools in a Windows 64-bit platform:

  1. JDK 1.7
  2. Eclipse 4.2 Juno
  3. Android SDK 4.4

1. Create a New Android Application Project

Open Eclipse IDE and go to File → New → Project → Android Application Project.

Specify the name of the application, the project and the package in the appropriate fields. Then click Next.

sendSmsProj1

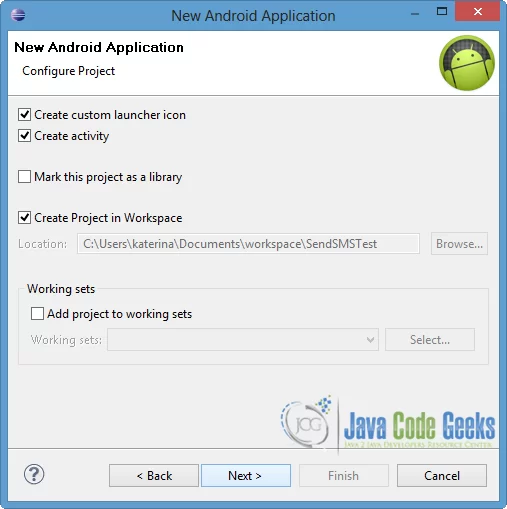

In the next window, choose the “Create Activity” check-option. The new created activity will be the main activity of your project. Then press Next button.

sendSmsProj2

In “Configure Launcher Icon” window you should choose the icon you want to have in your app. We will use the default icon of android, so click Next.

createProject3!

Select the “Blank Activity” option and press Next.

createProject4!

Specify a name for the new Activity and a name for the layout description of your app. The .xml file for the layout will automatically be created in the res/layout folder. Finally, press Finish.

createProject5!

Now, you can see the structure of your created project.

sendSmsStructure

2. Create the layout of the Main Activity

We will put two EditTexts so that the user can fill in a phone number and a message for a SMS. Also, we are going to add three different Buttons, that each one enables a different action and uses a suitable class (smsManager, Intent with SENDTO action, Intent with VIEW action).

Open res/layout/activity_main.xml and go to the respective xml tab. Then paste the following.

activity_main.xml:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/linearLayout1"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <TextView
        android:id="@+id/text"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="Complete the fields to send a sms"
        android:textAppearance="?android:attr/textAppearanceMedium" />

    <EditText
        android:id="@+id/phoneNumber"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:ems="10"
        android:hint="ex: 1234567890"
        android:inputType="phone" />

    <EditText
        android:id="@+id/smsBody"
        android:layout_width="fill_parent"
        android:layout_height="80dp"
        android:layout_marginBottom="30dp"
        android:hint="Write your sms here...." />

    <Button
        android:id="@+id/smsManager"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="Send the sms by SmsManager" />

    <Button
        android:id="@+id/smsSIntent"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="Send the sms by SENDTO" />

    <Button
        android:id="@+id/smsVIntent"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="Send the sms by VIEW" />

</LinearLayout>

3. Code the Main Activity

SmsManager handles SMS operations and getDefault() method should be called, in order to get an instance of this object. For the intent with ACTION_SENDTO we have to define the data as smsto: and the phone number added at the end. Respectively, for the intent with ACTION_VIEW we will define the type as vnd.android-dir/mms-sms, so only sms-mms providers will launch. Also, we have to add the phone number and the message as extra fields to that intent.

Open src/com.javacodegeeks.android.sendsmstest/MainActivity.java and paste the following.

MainActivity.java:

package com.javacodegeeks.android.sendsmstest;

import android.app.Activity;
import android.content.Intent;
import android.net.Uri;
import android.os.Bundle;
import android.telephony.SmsManager;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;

public class MainActivity extends Activity {

	private EditText phoneNumber;
	private EditText smsBody;
	private Button smsManagerBtn;
	private Button smsSendToBtn;
	private Button smsViewBtn;

	@Override
	public void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

		phoneNumber = (EditText) findViewById(R.id.phoneNumber);
		smsBody = (EditText) findViewById(R.id.smsBody);
		smsManagerBtn = (Button) findViewById(R.id.smsManager);
		smsSendToBtn = (Button) findViewById(R.id.smsSIntent);
		smsViewBtn = (Button) findViewById(R.id.smsVIntent);

		smsManagerBtn.setOnClickListener(new OnClickListener() {
			 public void onClick(View view) {
				 sendSmsByManager();
			 }
		});

		smsSendToBtn.setOnClickListener(new OnClickListener() {
			 public void onClick(View view) {
				 sendSmsBySIntent();
			 }
		});

		smsViewBtn.setOnClickListener(new OnClickListener() {
			 public void onClick(View view) {
				 sendSmsByVIntent();
			 }
		});

	}

	public void sendSmsByManager() {
		try {
			// Get the default instance of the SmsManager
			SmsManager smsManager = SmsManager.getDefault();
			smsManager.sendTextMessage(phoneNumber.getText().toString(),
					null,
					smsBody.getText().toString(),
					null,
					null);
			Toast.makeText(getApplicationContext(), "Your sms has successfully sent!",
					Toast.LENGTH_LONG).show();
		} catch (Exception ex) {
			Toast.makeText(getApplicationContext(),"Your sms has failed...",
					Toast.LENGTH_LONG).show();
			ex.printStackTrace();
		}
	}

	public void sendSmsBySIntent() {
		// add the phone number in the data
		Uri uri = Uri.parse("smsto:" + phoneNumber.getText().toString());

		Intent smsSIntent = new Intent(Intent.ACTION_SENDTO, uri);
		// add the message at the sms_body extra field
		smsSIntent.putExtra("sms_body", smsBody.getText().toString());
		try{
			startActivity(smsSIntent);
		} catch (Exception ex) {
			Toast.makeText(MainActivity.this, "Your sms has failed...",
					Toast.LENGTH_LONG).show();
			ex.printStackTrace();
		}
	}

	public void sendSmsByVIntent() {

		Intent smsVIntent = new Intent(Intent.ACTION_VIEW);
		// prompts only sms-mms clients
		smsVIntent.setType("vnd.android-dir/mms-sms");

		// extra fields for number and message respectively
		smsVIntent.putExtra("address", phoneNumber.getText().toString());
		smsVIntent.putExtra("sms_body", smsBody.getText().toString());
		try{
			startActivity(smsVIntent);
		} catch (Exception ex) {
			Toast.makeText(MainActivity.this, "Your sms has failed...",
					Toast.LENGTH_LONG).show();
			ex.printStackTrace();
		}

	}
}

4. Set the SMS Permission

We should set SEND_SMS as permission in the AndroidManifest.xml file, in order to send an SMS via our application. At this point, we should mention that the permission must be defined for smsManager, but it is not necessary for the implicit Intents.

Open AndroidManifest.xml file and go to the respective xml tab. Then paste the permission android.permission.SEND_SMS, as you can see below.

AndroidManifest.xml:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.javacodegeeks.android.sendsmstest"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="19" />

    <uses-permission android:name="android.permission.SEND_SMS" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.javacodegeeks.android.sendsmstest.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

5. Run the application

To run our application, right click on our project → Run as → Android Application. The AVD will appear with the app loaded.

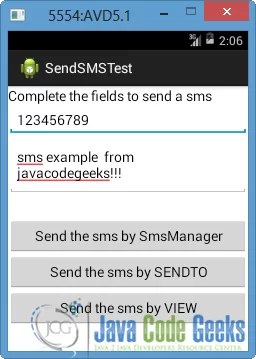

Fill in a phone number and a message in order to send a sms, as shown in the picture below.

ADVSmsProj1

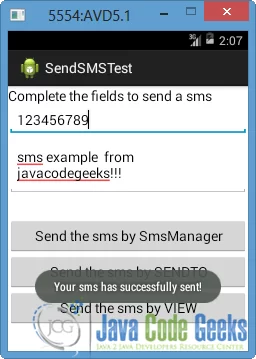

Lets press “Send the sms by SmsManager” button. The sms will be sent via smsManager, so a Toast will appear which certify the success of sms sending. Otherwise, an error message would be appeared.

ADVSmsProj2

Now press the “Send the sms by SENDTO” button. If more than one applications, that use a SENDTO action exist, the user will choose one of the displayed ones. For example, our emulator contains an application that uses an implicit intent with ACTION_SENDTO, as shown in the picture.

ADVSmsProj3

Lets choose the default Android app for sms. As you can see in the picture below, the fields are completed with the elements that the user gave previously.

ADVSmsProj4

Finally if we press the “Send the sms by VIEW” button, the device’s Built-in SMS application will launch with the appropriate fields filled in, same as shown in the image above.

Download Eclipse Project

This was an example of sending a sms in Android. Download the Eclipse Project of this example: SendSMSTest.zip
